VQ947H Electric V-type Ball Valve

Product overview

Model: VQ947H
Nominal diameter: DN25 ~ 300mm
Nominal pressure: PN1.6 ~ 4.0MPa
Main material: WCB, 304,316
Connection: Wafer, flange
Flange Standard: GB, ANSI, DIN, JIS
Electric actuator: switching, regulation, explosion proof
Design and manufacture: GB / T12237 / 1989, ASME B16.34, API608
Length of the structure: GB / T12221, ASME B16.10
Connection dimensions: GB 9113.1, ASME B16.5
Test standard: GB / T13927-1992, API 598, API6D

VQ947H Electric V-type Ball Valve product details

VQ947H Electric V-type Ball Valve - Product Description

VQ947H Electric V-type Ball Valve produced and sold by Baigang valve group with a cylindrical spring preloaded compensated movable metal seat structure, sealing performance and reliable. Core and valve seat will not produce jamming or detachment, long service life. The V-shaped cutout on the core has a shear effect with the metal seat, especially suitable for controlling medium with high viscosity, fiber, solid particles and slurry. Paper pulp industry structure is particularly superior. Valve flow capacity, pressure loss is small, and the medium will not be deposited in the valve body cavity, the valve not only has a similar ratio of flow characteristics, adjustable range, the maximum adjustable ratio of 100: 1, but also with accurate Adjustment and reliable positioning of the function.

VQ947H Electric V-type Ball Valve - main parts material

Part Name	Material
Body, bonnet	WCB	CF 8
Sealing ring	2Cr13 + Nitriding	304 + nitriding
Sphere	2Cr13 + hard grid	304 + hard grid
Seat, stem	2Cr13	304
Gasket	Flexible graphite + stainless steel	Flexible graphite + stainless steel
Studs	35CrMoA	1Cr18Ni9Ti

VQ947H Electric V-type Ball Valve - main performance specifications

Nominal pressure	Test pressure (MPa)		Suitable media	proper temperature
	Shell test	Seal test
1.6	2.4	1.76	Water, oil, gas and high viscosity, fiber, solid particles and other media	-28 ℃ ~ ≤550 ℃
2.5	3.75	2.75
4.0	6.0	4.4

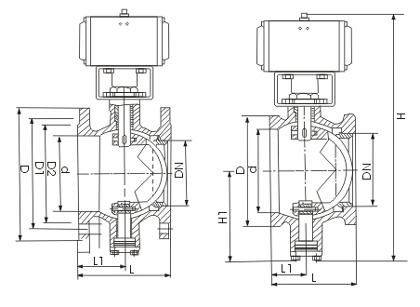

VQ947H Electric V-type Ball Valve - main dimensions

PN	Nominal diameter		Size (mm)
PN	(Mm)	(In)	W	L	W1	L1	d	d1	H1	H
PN1.6MPa	25	-	50	-	25	-	64	38	57	200
	40	-	60	-	25	-	82	49	63	205
	50	-	75	124	32	62	100	60	92	225
	65	-	80	145	38	72.5	120	75	100	235
	80	-	100	165	45	82.5	131	89	108	260
	100	-	115	194	50	97	158	113	117	270
	125	-	135	210	55	105	180	140	140	320
	150	-	160	229	65	114.5	216	164	177	340
	200	-	200	243	80	121.5	268	205	200	390
	250	-	240	297	90	148.5	326	259	252	420
	300	-	-	338	-	169	-	300	270	510
PN2.5MPa	25	-	50	-	25	-	64	38	57	200
	40	-	60	-	25	-	82	49	63	205
	50	-	75	124	32	62	100	60	92	225
	65	-	85	145	38	72.5	120	75	100	235
	80	-	100	165	45	82.5	131	89	108	260
	100	-	115	194	50	97	158	113	117	270
	125	-	135	210	55	105	180	140	140	320
	150	-	160	229	65	114.5	216	164	177	340
	200	-	200	243	80	121.5	268	205	200	390
	250	-	240	297	92	148.5	326	259	252	420
	300	-	-	338	-	169	-	300	270	510
ClASS150	25	-	50	-	25	-	64	38	57	200
	40	11/2	65	-	25	-	82	49	63	205
	50	2	75	124	32	62	100	60	92	225
	65	21/2	85	145	38	72.5	120	75	100	235
	80	3	100	165	45	82.5	131	89	108	260
	100	4	115	194	50	97	158	113	117	270
	125	5	135	210	55	105	180	140	140	320
	150	6	160	229	65	114.5	216	164	177	340
	200	8	200	243	80	121.5	268	205	200	390
	250	10	240	297	92	148.5	326	259	252	420
	300	12	-	338	-	169	-

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the VQ947H Electric V-type Ball Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
